FIXED GAS DETECTOR - STANDALONE

SMART TRANSMITTER / GAS DEDECTOR SD-1RI (Type HS)

FEATURE

SIL2 IEC61508:2010 Parts 1-7
4-20mA DC output with HART

TEX / IECEx certificate
Flameproof enclosure for Acetylene and Hydrogen
Self diagnosis by microprocessor

SPECIFICATION

Detection principle : IR

Sampling method : Diffusion

Explosion proof : Flameproof enclosure

Approvals : ATEX, IECEx, CE, TIIS

SMART TRANSMITTER / GAS DEDECTOR SD-1OX

FEATURE

ATEX / IECEx certificate
Flameproof enclosure for Acetylene and Hydrogen
Self diagnosis by microprocessor

SPECIFICATION

Target gas : Oxygen

Sampling method : Diffusion

Explosion proof : Flameproof enclosure

Approvals : ATEX, IECEx, CE, TIIS

INDOOR CARBON MONOXIDE MONITOR EC-600

SPECIFICATION

Detection principle : Electrochemical

Detection range : 0-150ppm

Sampling method : Diffusion

Approvals : CE

Power source : 100VAC +/- 10% 50/60Hz, 24VDC +/- 10%, Alkaline battery (AA size) x 2pcs

Dimensions & Weight : Approx. 80(W)×120(H)×35.5(D)mm, Approx. 200g (100VAC), 180g (24VDC),                                             230g (Alkaline battery)

FEATURE

Stand alone with audible and visual alarms (Analog output is also available)
Intuitive three color alarming display
Long life and reliable CO sensor
Three kinds of power supply are available, 100VAC, 24VDC, and Alkaline battery (two AA batteries)
Remote sensor with cable length 3m, 5m, 10m, 20m are available (optional)

SMART TRANSMITTER / GAS DEDECTOR SD-1EC

FEATURE

ATEX / IECEx certificate
Flameproof enclosure for Acetylene and Hydrogen
Self diagnosis by microprocessor

SPECIFICATION

Target gas : H2S / CO

Sampling method : Diffusion

Explosion proof : Flameproof enclosure

Approvals : ATEX, IECEx, CE, TIIS

SMART TRANSMITTER / GAS DEDECTOR SD-1GP / SD-1GH

FEATURE

ATEX / IECEx certificate
Flameproof enclosure for Acetylene and Hydrogen
Electrical power saving (Max. 3W)
Self diagnosis by microprocessor

SPECIFICATION

Sampling method : Diffusion

Explosion proof : Flameproof enclosure

Approvals : ATEX, IECEx, CE, TIIS

Operating temperature & Humidity : -20 to 60 ℃, Below 95%RH

GAS DETECTOR HEAD GD-F44

SPECIFICATION

Target gas : Combustible

Explosion proof : Flameproof enclosure

Approvals : ATEX, CE, TIIS

Dimensions & Weight : Approx. 197 (W) x 286 (H) x 140 (D) mm, Approx. 5.8kg

INDOOR OXYGEN MONITOR OX-600

FEATURE

Stand alone with audible and visual alarms (Analog output is also available)

Intuitive three color alarming display

Long life and reliable oxygen sensor

Three kinds of power supply are available, 100VAC, 24VDC, and Dry cells (two AA batteries)

Remote sensor with cable length 3m, 5m, 10m, 20m are available (optional)

Pressure compensation to eliminate false alarm caused by pressure variation

SPECIFICATION

Detection principle : Galvanic cell

Detection range : 0-25.0 vol%

Sampling method : Diffusion

Approvals : CE

Power source : 100VAC +/- 10% 50/60Hz, DC24V +/- 10%, Alkaline battery (AA size) x 2 pcs

Dimensions & Weight : Approx. 80(W)×120(H)×35.5(D) mm, Approx. 200g (100VAC), Approx. 180g                                          (DC24V), Approx. 230g (Alkaline battery)

Operating temperature & Humidity : 0 to 40℃, Below 90%RH

INTELLIGENT GAS DETECTOR GD-70D

APPLICATION

Gas leak monitoring for solar cell, semiconductor and LCD factories

FEATURE

Common platform (Main/Sensor/Pump) for all detection methods
Multi-functional sensor unit (New Intelligent sensor)
No internal tubing / No coil
Front Access/ No tool required / Easy replacement of sensor and pump
Various communication methods available (4-20mA, NT, PoE)
Minimal maintenance cost through enhanced troubleshooting firmware function

SPECIFICATION

Target gas : Toxic, Combustible, Oxygen

Detection principle : Different type depending upon sensor unit

Sampling method : Sample draw

Display of alarm : 1st alarm / 2nd alarm / Trouble alarm

Approvals : RoHs, CE

Power source : DC24V±10%, approx 1.5W (Max 4W including sensor unit)
Note: Approx :  2.5W (Max 5W) with SGU sensor unit

Dimensions & Weight : 70(W) x 120(H) x 150(D) mm, Approx. 0.9kg

Operating temperature & Humidity : 0 to 40℃, 30 to 80%RH (Non-Condensing)

SAFETY MONITOR FOR INSIDE FURNACE SD-2500

APPLICATION

Detector for high-boiling solvent in exhaust duct and furnace

FEATURE

Long sensor head (250mm in length)
Operating in high temp. 0 to 160℃
Flameproof enclosure
Easy operation with control key

SPECIFICATION

Target gas : NMP (N-methylpyrrodidone)

Detection principle : Catalytic combustion

Detection range : 0-100 %LEL

Sampling method : Diffusion

Type of alarm : Gas alarm, Trouble alarm

Explosion proof : Flameproof enclosure

Approvals : ATEX, TIIS, CE

Power source : DC24V

Dimensions & Weight : Main body: 148(W) x 161(H) x 88(D) mm
                                        Insert part: φ34 x 250 mmApprox 4.6kg

Operating temperature & Humidity : Main body: 0 to 50 ℃
                                                               Insert part: 0 to 160℃

SAFETY MONITOR FOR INSIDE FURNACE SD-2600

APPLICATION

Detector for high-boiling solvent in exhaust duct and furnace

FEATURE

Long sensor head (250mm in length)
Operating in high temp. 0 to 200℃
Flameproof enclosure
Easy operation with control key

SPECIFICATION

Target gas : Combustible gases

Detection principle : Catalytic combustion

Detection range : 0-100 %LEL

Sampling method : Diffusion

Type of alarm : Gas alarm, Trouble alarm

Explosion proof : Flameproof enclosure

Approvals : ATEX, TIIS, CE

Power sourceDC24V

Dimensions & Weight : Main body: 148(W) x 161(H) x 88(D) mm
                                        Insert part: φ34 x 250 mmApprox 4.6kg

Operating temperature & Humidity : Main body: 0 to 50 ℃
                                                               Insert part: 0 to 200℃

COMPACT SOLVENT GAS MONITOR FI-815

APPLICATION

Solvent gas monitoring for Offset rotary press, Laminator, Photogravure machine, Coating machine

FEATURE

No warm up required
Fast response
Long-term stability
No sensor poisoning by corrosive gases and silicone vapors

SPECIFICATION

Target gas : Combustible gases

Detection principle : Optical interferometric

Sampling method : Sample draw

Power source : AC100V ±10% 50/60Hz

Dimensions & Weight : Approx. 370(W) x 150(H) x 266(D) mm, Approx 6kg

Operating temperature & Humidity : 5 to 40 ℃, Below 95%RH (Non-Condensing)

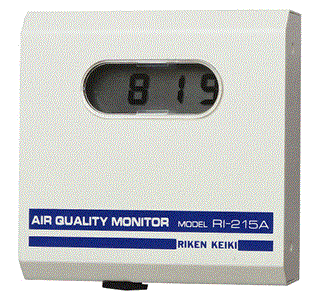

INFRARED CO2 GAS MONITOR RI-215A

FEATURE

Highly reliable Non-Dispersive Infrared gas absorption method
Compact, lightweight and easy installation
4-20mA output and alarm contact provided

SPECIFICATION

Target gas : Speciality

Detection principle : NDIR

Sampling method : Diffusion

Approvals : CE

Power source : DC24V

Dimensions & Weight : Approx. 78(W) x 78(H) x 31(D) mm, Approx 200g

Operating temperature & Humidity : 0 to 40 ℃, 10 ~ 90%RH (Non-Condensing)

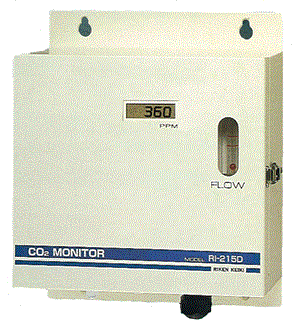

INFRARED CO2 GAS MONITOR RI-215D

FEATURE

Highly reliable Non-Dispersive Infrared gas absorption method
Compact, lightweight and easy installation
4-20mA output and alarm contact provided

SPECIFICATION

Target gas : Speciality

Detection principle : NDIR

Sampling method : Sample draw

Power source : AC100V, AC110V, AC220V ±10% 50/60Hz

Dimensions & Weight : Approx. 220(W) x 200(H) x 76(D) mm, Approx 3.6kg

Operating temperature & Humidity : 0 to 40 ℃, 10 ~ 90%RH (Non-Condensing)

GAS ANALYZER FI-800

APPLICATION

Fuel gas calorie control, Solvent gas monitoring, Purity control

FEATURE

Minimal maintenance cost
No sensitivity deterioration
No sensor poisoning by corrosive gases and silicone vapors

SPECIFICATION

Target gas : Combustible gases

Detection principle : Optical interferometric

Sampling method : Sample draw (No pump inside FI-800)

Explosion proof : Flameproof enclosure

Approvals : TIIS, GOST, KOSHA

Power source : AC100V ~ AC220V ±10% 50/60Hz

Dimensions & Weight : Approx. 220(W) x 332(H) x 122(D) mm, Approx 16kg

Operating temperature & Humidity : -10 to 40 ℃, Below 80%RH (Non-Condensing)

HIGHLY SENSITIVE TOXIC GAS MONITOR FP-300 SERIES

FEATURE

PPB detection for many gases
Easily transportable
Panel mounting configruration available
Cassette tape remainder display included

SPECIFICATION

Target gas : Sample draw

Detection principle : Photoelectric Photometry

Approvals : Toxic

Power source : AC100V ~ AC220V ±10% 50/60Hz (Desk top type)DC24V ±10% (Panel mounting type)

Dimensions & Weight : Approx. 164(W) x 198(H) x 263(D) mm, Approx 6.5kg (Desk top type)Approx. 164(W) x                                                 164(H) x 261(D) mm, Approx 5.5kg (Panel mounting type)

Operating temperature & Humidity : 5 to 35 ℃, 30 ~ 90%RH (Non-Condensing)

COMPACT INFRARED GAS MONITOR RI-557

APPLICATION

Research and lab, Environmental monitoring, CO2 gas control

FEATURE

Compact and light weight
Dual range standard
Simple to operate

SPECIFICATION

Target gas : Combustible gases, CO2, CO

Detection principle : NDIR

Sampling method : Sample draw

Power source : AC100V or AC220V ±10% 50/60Hz

Dimensions & Weight : Approx. 220(W) x 200(H) x 320(D) mm, Approx 6kg

Operating temperature & Humidity : 0 to 40 ℃, Below 90%RH (Non-Condensing)

INFRARED SINGLE GAS MONITOR RI-257

APPLICATION

Cleaning processes, Cold-storage plants, Drying rooms, Refrigerators

FEATURE

Compact & light weight design
Negligible interference from other gases

SPECIFICATION

Target gas : Perfluoro compound gases, IPA

Detection principle : NDIR (Non-dispersive infrared)

Sampling method : Sample draw

Approvals : CE

Power source : AC100V, AC117V, AC220V±10% 50/60 Hz

Dimensions & Weight : 180(W) x 355(H) x 97(D) mm, Approx 3.8kg

Operating temperature & Humidity : 0 to 40℃, 30 ~ 90%RH (Non-Condensing)
